Acetabular Hip Systems

MicroPort Orthopedics acetabular cup systems have established clinical heritage built on over 25 years of clinical presence.

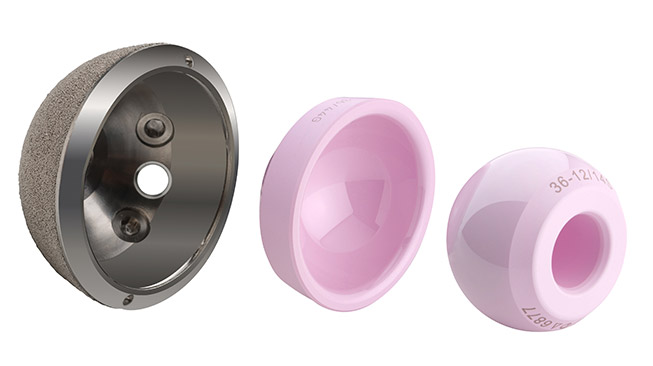

Procotyl® L Hip System

The Procotyl® L acetabular cup system has integrated several design features to address long term survivorship. The intrinsic design features that address contemporary two-piece acetabular cup issues, coupled with multiple liner configurations, make the Procotyl® L acetabular cup system the choice for surgeons requiring a wide range of primary, revision and bearing material options.

Not all products and options are available in all countries. This product is not marketed/registered in United States.

Design features

Optimal outer geometry
- Hemispherical, single-radius shape with a flattened dome combined with a 14° rim flare that transfers the load to the periphery of the acetabulum
Optimal fixation surface
- 30% porous titanium beaded coating to enhance initial fixation and long term bone apposition
Multiple liner options
- 18° internal taper and a rim-locking groove accept Biolox® Delta Ceramic Liners or A-Class® highly cross-linked polyethylene liners
Surgical flexibility
- 3 pre-closed fixation holes in one quadrant allow for additional screw fixation if needed

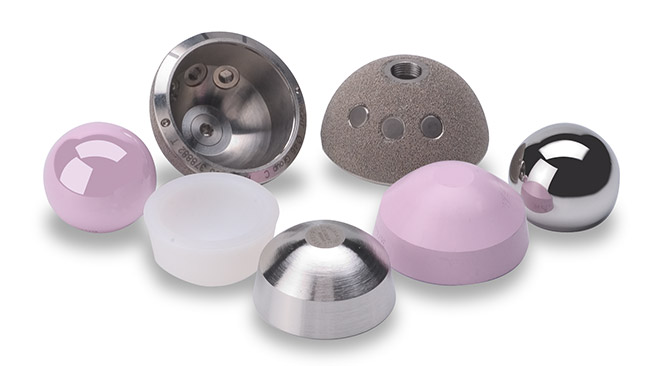

Product options

Solid and quadrant (3 hole)
Hydroxyapatite coated cup options
A-Class® highly cross-linked polyethylene (0° and 15° lip options) and Biolox® Delta liners
Head and liner sizes: 28, 32, 36, 40mm*
Shell sizes: 42–68mm (2mm Increments)

*Only for ceramic liner options
